Comments
LOOK AT THE HEAD OF THE CAM. IF THIS MEASUREMENT IS 1" THEN THE SHOES ARE EXTENDED SERVICE (1-0801)
| Base Number | 1-080 | Eaton Front Brake Shoe | ||
| Brake Diameter | 15" | |
||
| Brake Width | 4" | |||
| Manufacturer | Eaton | |||
| FMSI Number | 1308 | |||
| BWP | M3350 | |||
| Euclid | E5126 | |||
| Nuturn | L2808 | |

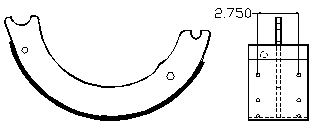

1308 LINING HAS 14 HOLES. DRILL PATTERN ON LINING IS 2.75" CENTER TO CENTER. | |
| Meritor | ||||
| Rome | 1308E | |||
| Eaton | 1005840 | |||
| Dana | ||||
| Bendix | ||||
| Web Number | 1005836 | Special Feature Notes: | Special Feature: | |
| Table Number | 1005840 | THIS SHOE
IS FOUND ON EATON FRONT AXLES PRE 1995 APPLICATIONS.
LOOK AT THE HEAD OF THE CAM. IF THIS MEASUREMENT IS 1" THEN THE SHOES ARE EXTENDED SERVICE (1-0801)
|
|
|
| Spring Kit | 08-111300 | |||
